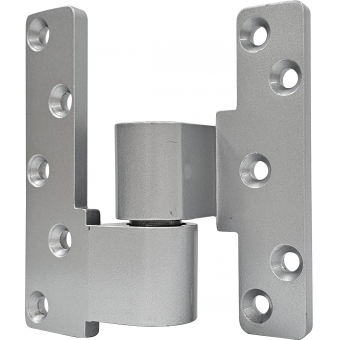

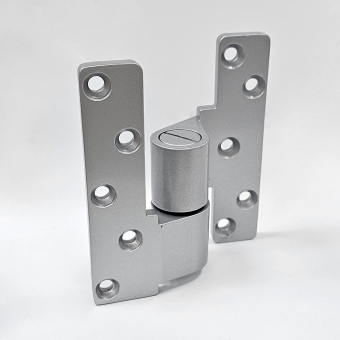

3/4" OFFSET INTERMEDIATE PIVOT SET, LEFT HAND

Used when frame condition does not allow standard top pivot

• Lateral load-bearing
• Maintains door alignment
• Aids in installing floor closers and bottom pivots
• Heavy-duty needle bearing
• Non-ferrous base metal
• 3/4" (19mm) offset standard
• Available for 1-1/2" (38mm) offset
• Available for fire door assemblies (ferrous material)
• For 20-minute label suffix “–20” to part number
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot.
• Door edges must be beveled in 1/8" in 2"

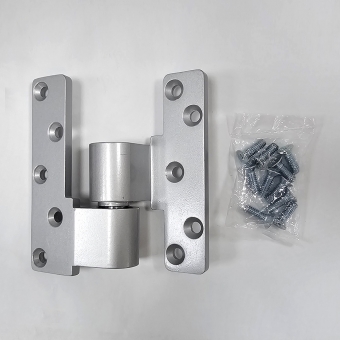

• Furnished with wood and machine screws
