KDH-019-0002

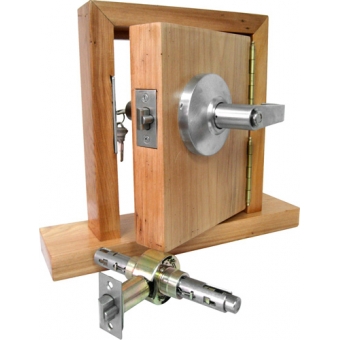

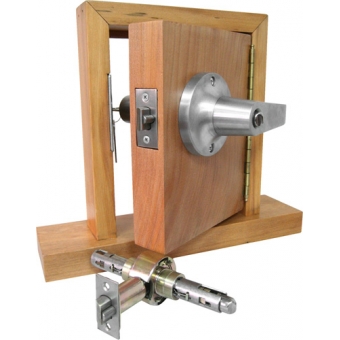

Cylindrical Lock

For doors : 1-3/4" to 2-1/4" thick. Factory adjusted for 1-3/4".
Backset : 2-3/4" only. Guarded.
Front : Stainless steel, wrought brass, or wrought bronze. 2-1/4" x 1-1/8". Beveled 1/8" on 2".
Rose : 3-3/8" diameter.
Finishes : 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D)

INQUIRY

DESCRIPTION

Case : Heavy duty zinc die-cast, investment cast and chromated cold rolled steel mechanism. Billet steel spindles.
Standard : ANSI A156.2, Series 4000, Grade 1. Meets all applicable accessibility requirements of the ADA. U. L. Listed. BHMA.
